Machine tool builder, DMG Mori offers its customers better tool life, higher degree of accuracy and overall production efficiencies through a partnership with Siemens.

DMG Mori manufactures a variety of conventional chip-cutting and ultrasonic machining centres for companies serving the aerospace industry. In this industry, several factors require care and planning in the machining process. Typical components produced include those made from lightweight, but hard materials, such as titanium, as well as aluminium workpieces where substantial volumes of material removal occurs, such as fan blades and blisks. Due to long cycle times and high raw material costs, the machining of such components has presented a challenge to part production departments and job shops alike.

On two recent applications, DMG Mori turned to business partner Siemens for assistance. By offering a total package of CAD/CAM/CNC hardware, software and engineering services, Siemens was able to help DMG Mori improve every aspect of part production, including reduction of design-to-part protocols, machining time, tool life, surface finish, dimensional accuracies and overall production efficiencies.

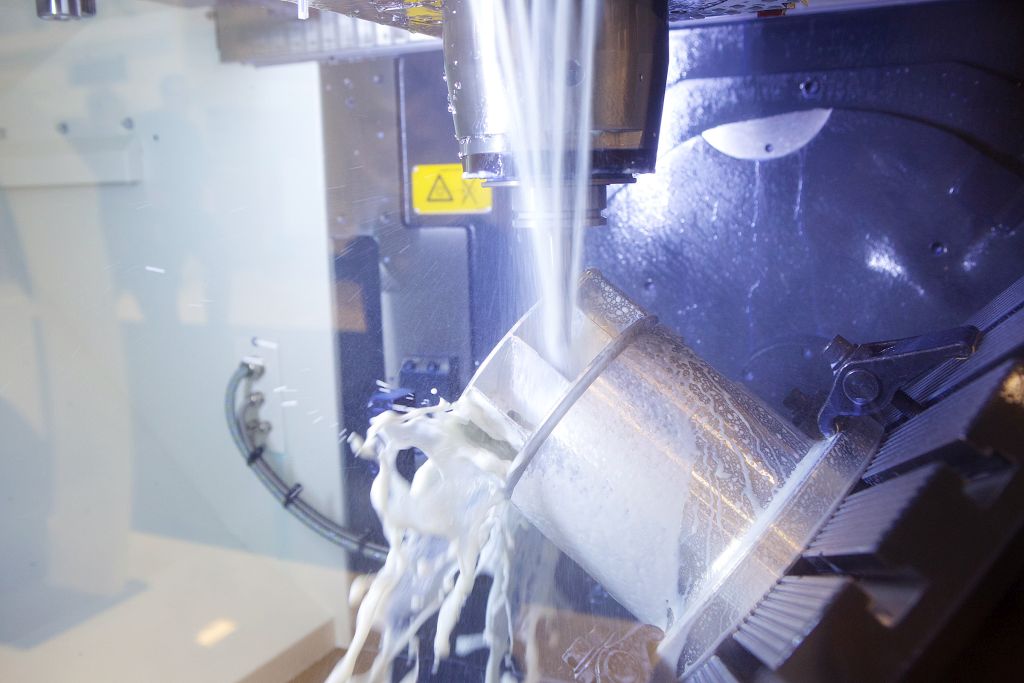

In the first instance, a reverse thrust component for an aero engine was made from Ti Gal-4-V. Starting from the CAD file, Siemens’ PLM team ran the program through its NX CAM with a VoluMill add-on feature that calculates for maximum material removal rates. The User Defined Events feature inside the NX program allows simple check boxes for triggering post-processor references for coolant pressure, amplitude, ultrasonic generator settings and more. This avoids manual programming and reduced the program transition time from as long as two days to approximately 30 minutes.

Once the program was ready for the control, the features of the Sinumerik 840D sl CNC allowed a more streamlined simulation of the actual cutting path. The 3D quick set compressor feature provides a parametric itemised data file for all path motions, thereby eliminating collision and ensuring the optimum tool path, in conjunction with the NC kernel and PLC on the machine tool.

Huge time-savings

As Siemens technical applications centre manager, Randy Pearson observes: “This feature is a huge time saver for our customer as the test ball and probe in the spindle mechanism can be run at any point in the cycle, testing the actual machine kinematics at any time. The procedure can also be automated to run on the table at prescribed time intervals.”

The high-speed machining feature is highlighted by Cycle 800, which is a static plane transformation that allows a 5-axis machine to define a rotated working plane in space. It is commonly known in the industry as 3+2 programming. The cycle converts the actual workpiece zero and tool offsets to refer to the rotated surface. Of note here, the cycle accommodates particular machine kinematics and positions the physical axes normal to the working plane. This is referenced as TRAORI or transformation orientation.

Meanwhile, the Sinumerik CNC Operate user interface on the machine allows the operator to perform a variety of integrated tool management and information management functions, all transportable on a USB or network connection.

In the simulation, the loading and fixturing of the workpiece is performed virtually in NX CAM, which also calculates a consistent chip load, critical in these large material removal applications. The simulation further verifies the tool length at every cutting section and the program is finalised for the machine to begin. It is literally like working with a ‘digital twin’ of the machine.

Toolpath creation control

During production, this process yielded a 2.25x improvement in tool life on this very hard material, according to DMG national product manager, Luke Ivaska:  “With the combination of NX CAM, plus the Sinumerik 840D sl on the machine and all it could do, we had some initial challenges, as most software programs are purpose-built CAM packages that allow quick and easy use by anyone. They have significant limitations; however, as the software drives the toolpath and the operator has very little control. With NX CAM and Sinumerik, we have a lot more input on the creation of the toolpath. I have yet to find a problem I could not solve with NX.”

The finished part is run in 4½hours with a surface finish improvement from 62.5 Ra to 35 Ra, due to the ultrasonic factor.

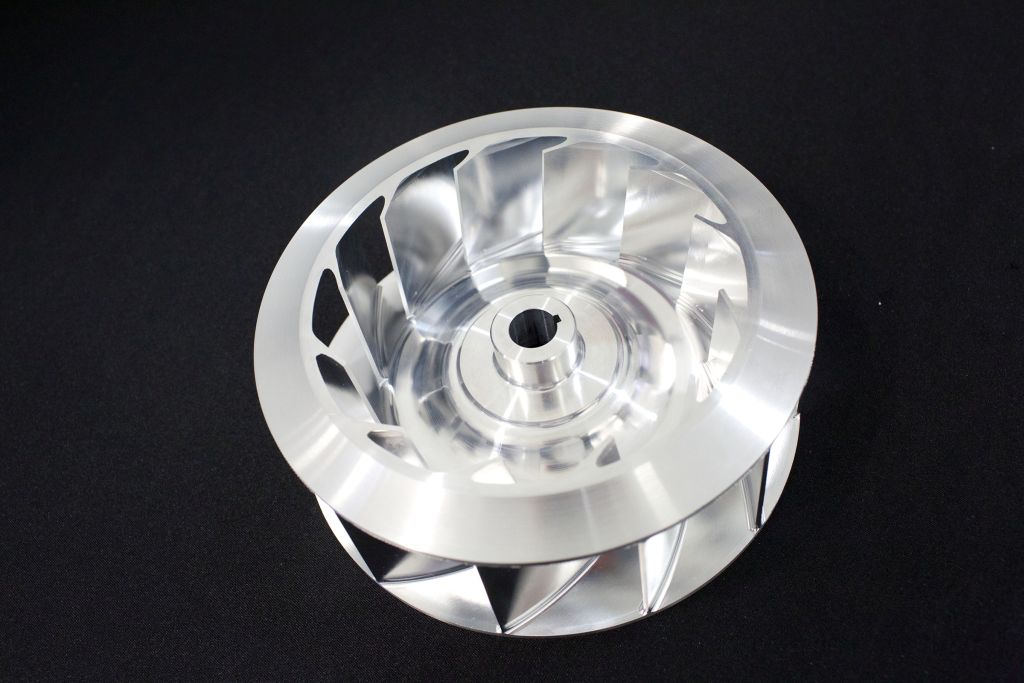

In the second example, a conventional 5-axis machining centre, the entry-level DMU 50 is utilised to cut a 7” diameter x 2” high block of 6061 aluminium into an impeller fan for the aerospace industry, with more than 90% material removal achieved. The same NX CAM software began this process chain, with the initial benefit of considerable time savings in the 5-axis setup and comprehensive G-code simulation and verification in a single system. Because of the bladed structure of this impeller fan component, only a 0.5Ëš clearance between the part and the toolholder was allowable during the machining. Simulation with NX CAM is key to get in that tight of a spot without collision of tool and part. DMG Mori engineering looked to another long-time tooling partner Haimer whose slim line holder was deemed a viable solution for this application. Meanwhile, the interpolated tool axis and section views were run on NX CAM to verify the operation of the tool in this very tight workspace.

In the Sinumerik 840D sl, the same 3D quick set compressor feature ensured the proper tool path, while the high-speed machining setup and Cycle 800 were again utilised for this project. Sinumerik Operate, the CNC’s graphical user interface, afford the end user’s operator and manufacturing engineering personnel full access to a variety of conditions in production, including all roughing and finishing data in plain text, plus all 5-axis transformation orientation data logged for restart after any interruption and manual restart.

The variable streamline operation of the machine tool combines with an interpolated vector to produce a smoother finish in the machining of the blade surfaces in a single tool path. The machine seamlessly transitions from square-to-round machining and then the extreme angle paths needed to accurately machine the blade internals. The single blade fin portion of the program was automatically captured, so a step-and-repeat program can be built-up. The simulation of each blade fin cutting path was done on both the NX CAM and the CNC programs.

Seamless continuity

This vectored program is transportable to any machine with comparable results, according to Siemens PLM director of business development, Matthias Leinberger, who comments: “Because the machine kinematics are knowable, this program, once created, can be transferred onto multiple machines within the same facility or run by shops around the world, all tied together by the control, so there is total continuity between the operations, the data capture protocol and feedback received for production analysis.”

Both these projects were performed using the new CELOS onboard the DMG Mori machines. CELOS facilitates the total interaction between operator and machine, in these applications, as it has numerous apps to enable instant call-up of actual conditions, full data comparison through a link to CAD and CAM products, plus full interface to the customer company’s ERP system for logging and analysis, with in-process remote adjustment. In the case of these aerospace customers, interactive communication to a global production network is also provided.
